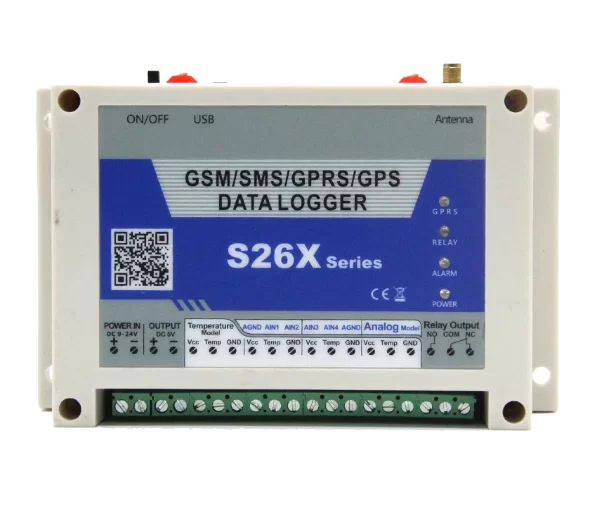

בקר לוגר GSM GPRS
1. GSM Quad-Band,distribute worldwide applications available
2. 4 channel analog input: 0-20mA, 4-20mA, 0-5V
3. SMS command or PC Software programming
4. User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)
5. 6 numbers for receiving input alert and relay control
6. Relay control programmable when alarm thresholds exceed
8. Recording data on internal memory:
Min interval: per 5 mins, can save data on unit more than 6 months
Max interval: per 255 mins,can save data on unit more than 10 years
9. Historical data download to PC ( .csv format) via USB
10. Historical data query and download remotly by GPRS (*work with KingCenter CMS-02)
11. Supports 2 Server(Master and Slave) via GPRS
12. Daily report, schedule upload, event upload programmable
13. AC/DC Power status monitoring, AC ON/OFF alert by SMS
14. Rechargeable Backup Battery inside (Approx. 8 hours standby)
15. IP67 Environmental protection enclosure(S263)
16. GPS tracking module optional
Specifications
1. GSM Frequency: Quad-band,850/900/1800/1900MHz
2. Input Channel: 4 Analog, 0-20mA, 4-20mA, 0-5V
3. Output: 1 Relay, NC/NO contacts, 7A/125V AC, 5A/250VAC,20A/14VDC
4. Power Supply : 9~24VDC 2A
5. Power Consumption: 12V input Max.50mA/Average 25mA
6. SIM Card Supporting: 3V SIM Card
7. GSM Antenna: 50 ohm SMA Antenna interface
8. Backup Battery: 3.7V/1200mAH
9. Relative Humidity: 90%(condensation free)
10. Installation: 35mm DIN Rail (S262)
IP67 Enclosure (S263)
11. Connecting Wires: 2.5mm
12. Exterior Dimensions: 145*90*41mm (S262)
180*140*60mm (S263)
S26x Series PC Programming Tool (Windows XP and Windows 7/8 OS) Functions:
1. Authorized users setting
2. GPRS Parameters setting
3. Server IP and Port setting
4. Ultra-Low/Low/High/Ultra-High alarm thresholds
5. Query current values
6. Data recording interval
7. Historical data inquiry and export( .csv format)
8. SMS Daily report interval
9. GPRS data upload interval
10. Relay action setting
11. Relay test
12. Date & Time adjustment
13. GPRS data transceiving debug
Packing list:
Main unit 2G*1
100~240VAC/12VDC 2A Power adaptor *1
GSM Antenna *1
User Manual & PC Software CD *1
Size: 235 * 225 * 65mm
Gross Weight: 0.75KG
